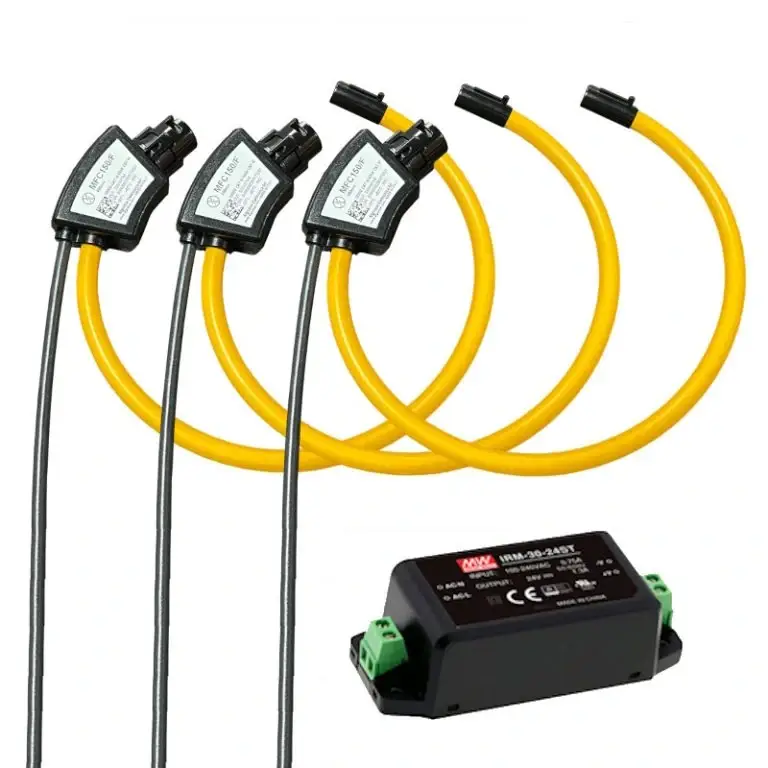

MFC150/F Rogowski-Coil Kit — 3-Phase Solar Export Metering product image

Algodue · Rogowski-coil kit

MFC150/F Rogowski-Coil Kit — 3-Phase Solar Export Metering

Three-phase Rogowski-coil retrofit kit for commercial-solar export metering — 3 flexible coils + a 12 V PSU, 333 mV full-scale output. Select your inverter/meter and full-scale current.

The Algodue MFC150/F Rogowski-coil kit is a three-phase retrofit bundle for commercial-solar export metering: three Ø8 mm flexible Rogowski coils (one per phase), each with a built-in integrator delivering a 333 mV full-scale output, plus a 12 V DC power supply for the integrators. Choose the inverter/meter the kit feeds — Fronius Smart Meter, SolarEdge SE-MTR-3Y-400V-A or Sungrow DTSU666-20 — and the full-scale current (1, 2 or 3 kA, all on the 60 cm coil). The coils clip over live conductors without breaking the circuit, present no open-circuit-secondary hazard, and are delivered calibrated.

Up to several kA — 333 mV/FS output
No open-circuit-secondary hazard
Flexible Ø8 mm, 60 cm coil (~17.5 cm aperture)
333 mV/FS · built-in integrator · 3-phase kit

Full-scale & coil

Inverter / meter

SKU KIT-MFC150F-FRO-1KA

$1,155AUD

In Stock

Qty
1
Back to shop

3 coils + 12 V PSU · Ø8 mm · 333 mV full-scale · 1/2/3 kA

Technical detail

MFC150/F kit specifications

Coil, integrator & kit

Kit3 × MFC150/F coils (one per phase) + 12 V DC PSU
CoilØ8 mm flexible · 60 cm length · ~17.5 cm aperture
Output333 mV / full-scale (RMS) — built-in integrator
Selectable full-scale1 / 2 / 3 kA (333 mV at full scale)
Integrator supply4–26 V DC, ≤5 mA
Frequency50/60 Hz
Overvoltage categoryCAT III 1000 V / CAT IV 600 V
Insulation test7400 V RMS / 5 s
StandardsUL 61010-1 Ed3 · UL 61010-2-032 · CAN/CSA-C22.2 No.61010-1 · IEC 60529
CalibrationDelivered calibrated
Cable3 m shielded (per coil)

In the box

3 × MFC150/F flexible Rogowski coils (selected full-scale, 60 cm, calibrated, 3 m shielded cable + bayonet connector)
1 × 12 V DC power supply for the coils' built-in integrators

Specifications per the Algodue MFC150/F datasheet (UL 61010-1 Ed3 / UL 61010-2-032 / CAN/CSA-C22.2 No.61010-1 / IEC 60529). 333 mV full-scale output via the coil's built-in integrator; delivered calibrated.
